King Construction Hardware Factory

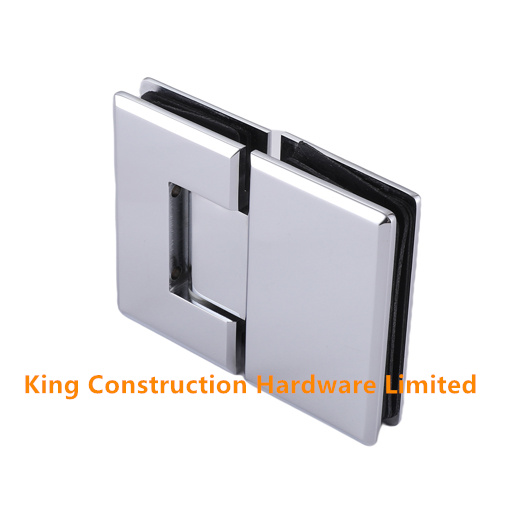

180 Degree Glass to Glass 6mm Hinge

Item No.

BHB-180 / TRI180

Glass Thickness:

1/4" (6mm) to 5/16"(8mm) Tempered Glass

Features:

Hinge swing 90 degree in and swing 90 degree out

Get A Good Price Here, or Help You With Your Questions.

Specification

Item No.

BHB-180 / TRI180

Materials

Solid Brass

Closing Type

Self-closing when the door within 15 degree of closed position

Hardware Finishes

Chrome, Brushed Nickel, Brass, Satin Brass, Matte Black, White Coating, Brushed Gun Metal,etc.

Glass Cutout

Mouse Ear Cutout

Hinge Sizes

46mm x 75mm

Description

BHB-180

Frameless Shower Door Hinge

Beveled Edge / Junior Hinge

180 Glass to Glass Hinge

Glass Thickness: 6mm to 8mm Tempered Glass

Construction: Solid Brass

Cutout: Mouse Ear Cut

Two Hinges max door weight 28kg,max door width 710mm

Three Hinges max door weight 40kg,max door width 810mm

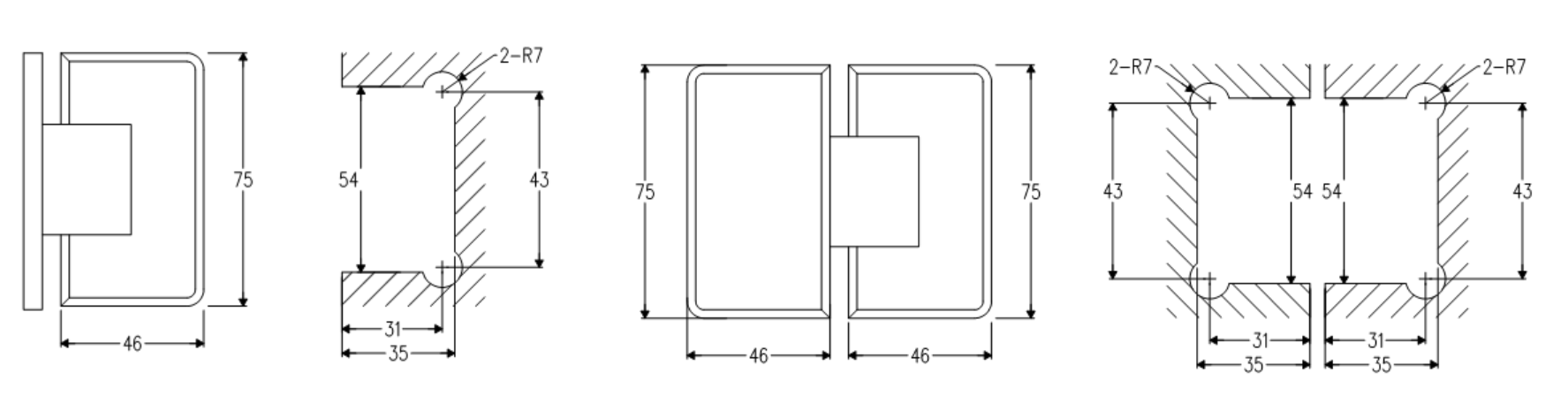

BHB hinge cutout.png
